G64-3198 Quartz Glass Sleeve

G64-3198 open-ended replacement quartz sleeve for UV water-treatment equipment. The published reference is 1540 mm long, with a 25 mm outside diameter and 22 mm inside diameter. Supplied by Glass Automated Products.

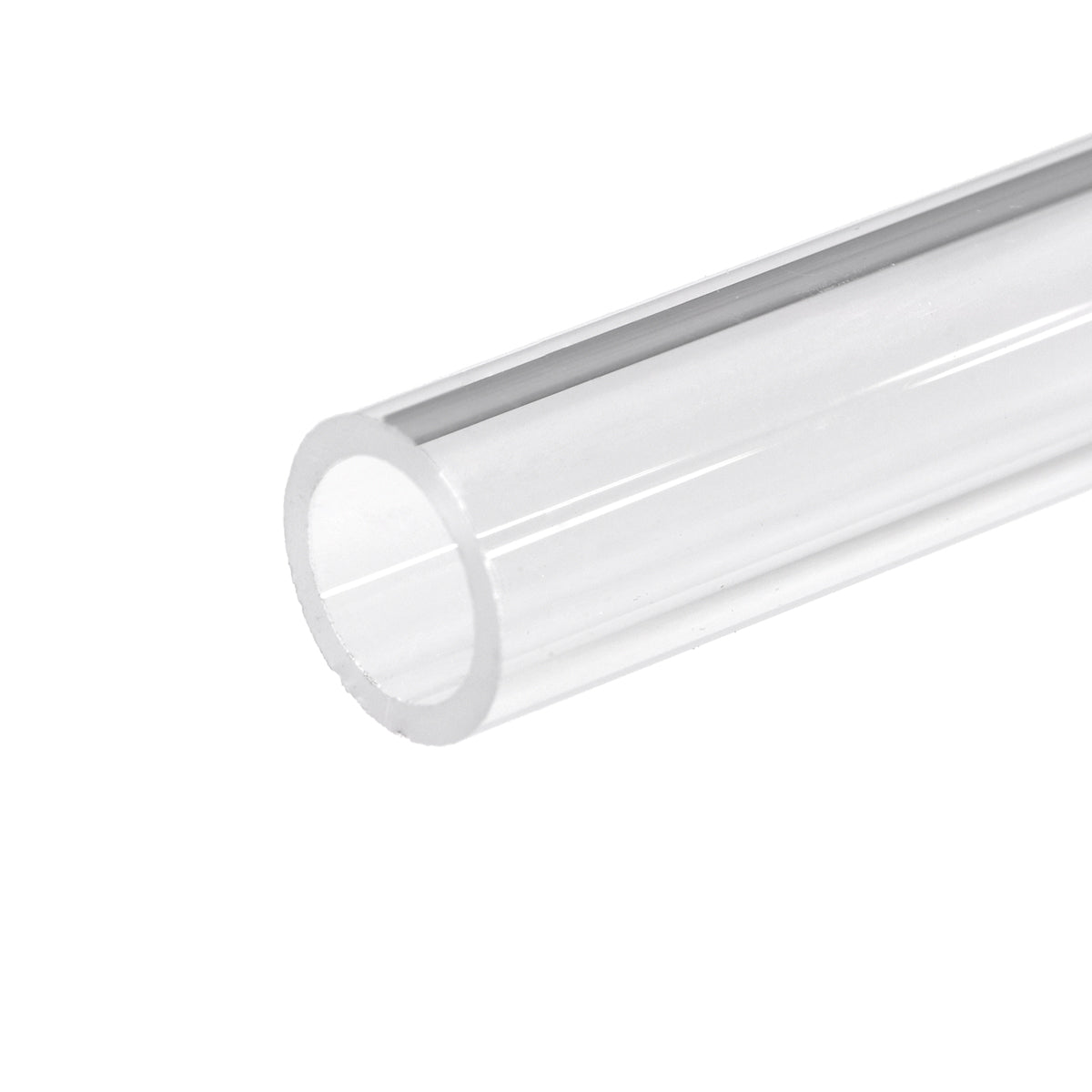

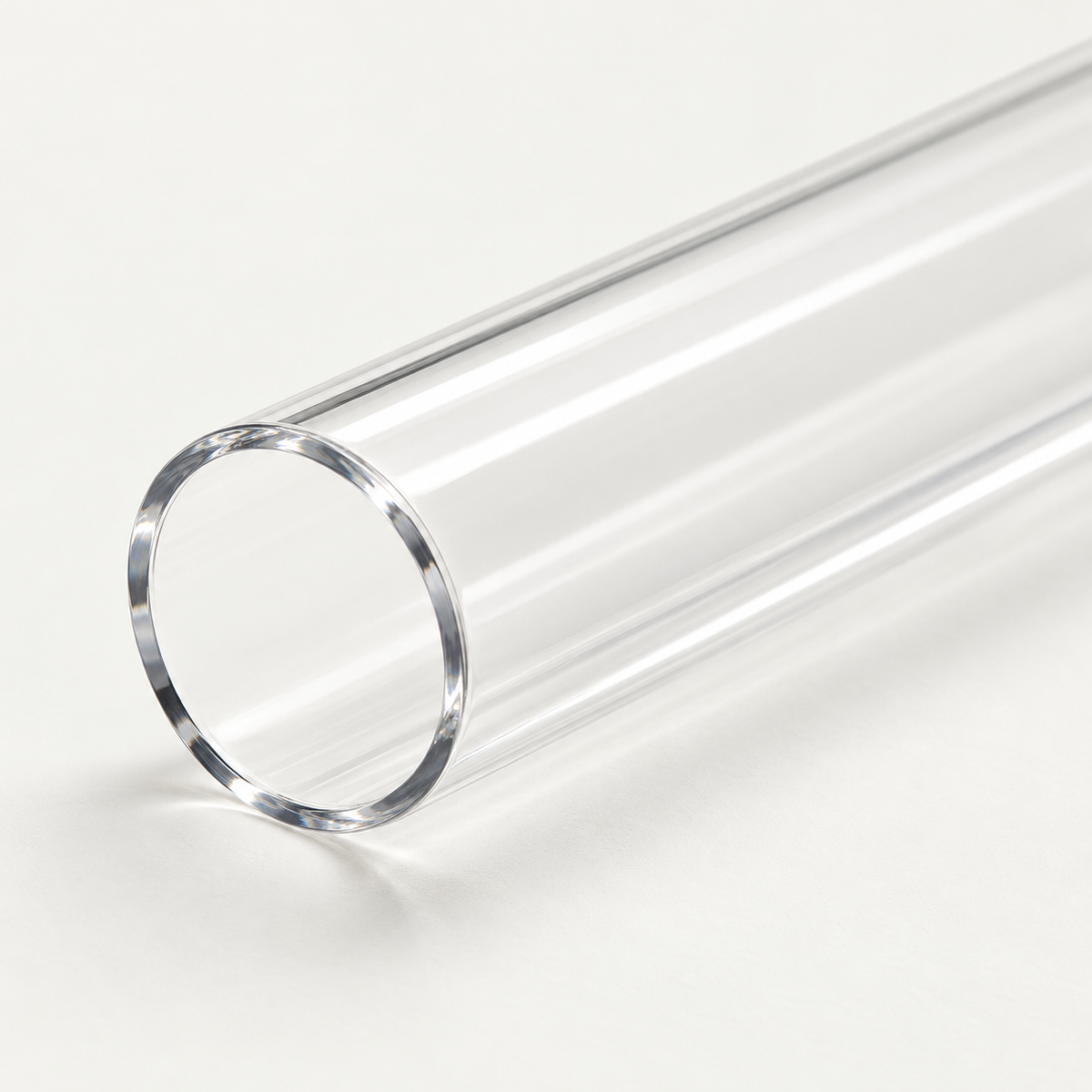

Representative photo. Refer to the listed dimensions and end configuration for the exact sleeve supplied.

G64-3198 reference dimensions

Nominal identification dimensions are published in UV Superstore’s G64-3198 reference. Confirm the equipment, seal interface and any drawing tolerances before ordering.

System references

UV Superstore lists this reference for Aquafine Optima 400, Aquafine HX02CDL and Wedeco LCI-6L. Use these as identification references and match the exact sleeve in your equipment manual.

Check more than the length

Some systems list multiple sleeves of the same length with different diameters. Compare the 25 mm outside diameter, 22 mm inside diameter and both open ends with your existing sleeve. A lamp length or system name alone does not establish the correct sleeve.

Ordering and support

Order from 1 piece. For help matching a sleeve or planning a repeat order, send the equipment model, existing part reference, measured dimensions and photographs. Include the quantity and required delivery date so we can review your requirements.

This listing is for the quartz sleeve. Lamps, O-rings, seals and mounting hardware are supplied separately unless listed in your order confirmation. Follow the equipment manufacturer’s service and installation instructions.
