QZ0790-UV Replacement Quartz Sleeve — Domed

QZ0790-UV domed replacement quartz sleeve for UV water-treatment equipment, supplied by Glass Automated Products. The published reference is 1626 mm long, with a 28 mm outside diameter and 25 mm inside diameter.

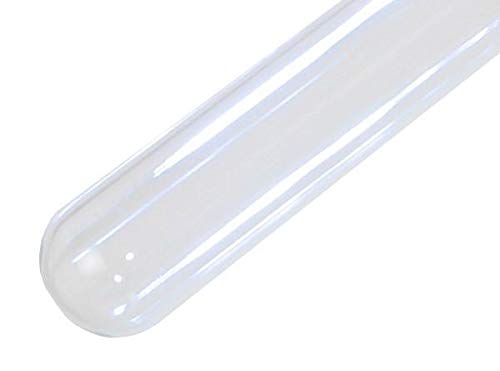

Representative photo. Refer to the listed dimensions and end configuration for the exact sleeve supplied.

QZ0790-UV sleeve dimensions

These nominal identification dimensions come from UV Superstore's QZ0790-UV domed sleeve reference. If your drawing calls for specific tolerances or material documentation, include it with your request.

Match the full reference and closed end

Use the 1626 mm sleeve length when comparing your part; the 0790 in the code is not its published length. Check both diameters, the domed end and the sealing or support arrangement against your existing sleeve and equipment parts list.

A similar QZ prefix or diameter does not establish a system match. For identification help, send the complete part marking, equipment model and photographs of both ends, along with your measurements.

Order a replacement or discuss repeat supply

Order from 1 piece online. This listing covers the quartz sleeve; the UV lamp, seals and mounting hardware are separate unless specified in your order confirmation. For repeat quantities or a required delivery date, include those details with your inquiry.

Get help with QZ0790-UV · Compare sleeve dimensions · Find another part

Shipping options and applicable taxes are shown at checkout. For a required delivery date, ask us to confirm timing before ordering.
