QZ53-1643 Replacement Quartz Sleeve — Open Ended

QZ53-1643 open-ended replacement quartz sleeve for UV water-treatment equipment, supplied by Glass Automated Products. The published reference is 1590 mm long, with a 28 mm outside diameter and 25 mm inside diameter.

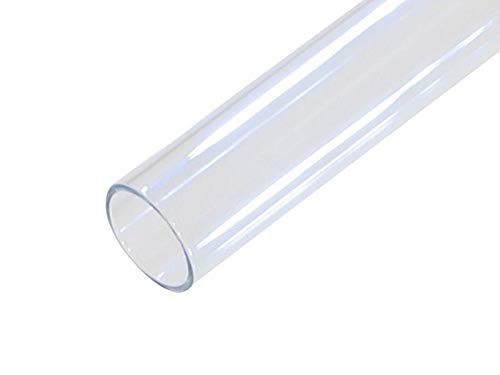

Representative photo. Refer to the listed dimensions and end configuration for the exact sleeve supplied.

QZ53-1643 reference dimensions

Dimensions are nominal identification references from UV Superstore’s QZ53-1643 listing. The 1643 in the part number is not the published sleeve length.

LeopardUV long-chamber references

The manufacturer’s Leopard parts breakdown identifies QZ53-1643 in its long-chamber sleeve list. Examples include LP4LHO-6 high-output and LP5LA-8 amalgam systems. Check your complete model and parts list before ordering.

Does your system have a wiper?

The current manufacturer parts breakdown identifies a separate quartz sleeve for wiper systems. If your unit has a wiper assembly, confirm the specified sleeve reference before selecting QZ53-1643. Similar length or appearance alone does not establish interchangeability.

Ordering and support

Order from 1 piece. For help matching a sleeve or planning a repeat order, send the equipment model, existing part reference, measured dimensions and photographs. Include the quantity and required delivery date so we can review your requirements.

This listing is for the quartz sleeve. Lamps, O-rings, seals and mounting hardware are supplied separately unless listed in your order confirmation. Follow the equipment manufacturer’s service and installation instructions.

Get help matching QZ53-1643 or call 714-898-8800.
