RQ-820 Replacement Quartz Sleeve — Domed

RQ-820 domed replacement quartz sleeve for UV water-treatment equipment. LUMINOR’s published reference is 866 mm long, with a 22.5 mm outside diameter and 20 mm inside diameter. Supplied by Glass Automated Products.

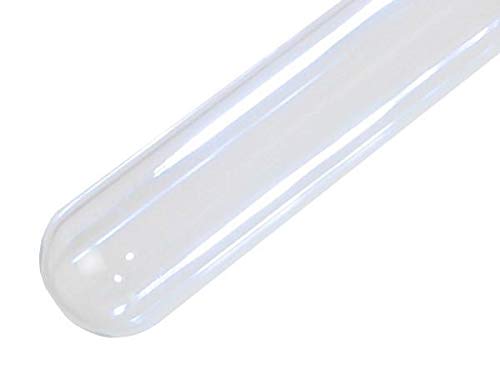

Representative photo. Refer to the listed dimensions and end configuration for the exact sleeve supplied.

RQ-820 manufacturer reference

Dimensions are part-identification references from the LUMINOR model tables linked below. They are not a custom fabrication tolerance or an independently measured specification for your existing sleeve.

LUMINOR system references

LUMINOR lists RQ-820 for LB4-101, LB5-101, LB6-101. Match the full model, including any suffix or revision, to the sleeve in the equipment manual.

Match the sleeve to the system

The 866 mm reference is corroborated by UV Superstore’s RQ-820 domed listing. Check the sleeve length, both diameters, domed end and sealing arrangement. The 820 in the part code is not the published sleeve length; use the 866 mm sleeve reference when checking your part.

This is the domed listing. Our generic RQ-820 tube listing is a separate catalog item and should not be substituted solely on the shared part reference.

Ordering and support

Order from 1 piece. For help matching a sleeve or planning a repeat order, send the equipment model, existing part reference, measured dimensions and photographs. Include the quantity and required delivery date so we can review your requirements.

This listing is for the quartz sleeve. Lamps, O-rings, seals and mounting hardware are supplied separately unless listed in your order confirmation. Follow the equipment manufacturer’s service and installation instructions.

Get help matching RQ-820 or call 714-898-8800.
