RQ-850 Replacement Quartz Sleeve — Domed
RQ-850 Replacement Quartz Sleeve — Domed
Couldn't load pickup availability
RQ-850 domed quartz sleeve for UV water-treatment equipment, supplied by Glass Automated Products. Its published reference dimensions are 900 mm long, 22.5 mm outside diameter and 20 mm inside diameter.

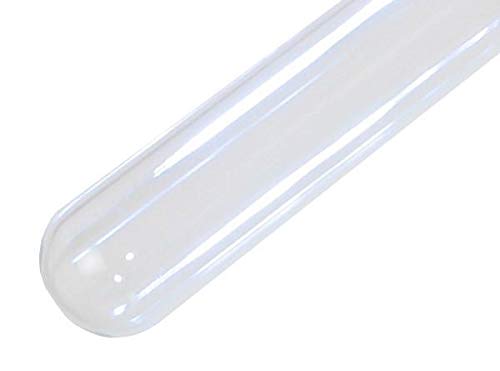

Representative photo. Refer to the listed dimensions and end configuration for the exact sleeve supplied.
RQ-850 domed sleeve dimensions
| Part reference | RQ-850 |
|---|---|
| End configuration | Domed one end |
| Reference length | 900 mm |
| Outside diameter | 22.5 mm |
| Inside diameter | 20 mm |
LUMINOR's sleeve tables and UV Superstore's domed RQ-850 reference agree on these nominal dimensions. They identify the replacement configuration; custom tolerances require a drawing review.
BLACKCOMB LB4-201, LB5-201 and LB6-201 references
The manufacturer specifies RQ-850 for BLACKCOMB 4.1 LB4-201, BLACKCOMB 5.1 LB5-201 and BLACKCOMB 6.1 LB6-201. Check your full model and revision against the equipment parts list.
Use the 900 mm sleeve measurement
For these models, LUMINOR lists the RL-850 lamp at 850 mm and the RQ-850 sleeve at 900 mm. Check the quartz component's length, diameters, closed end and seal interface when selecting a replacement.
GAP's generic RQ-850 quartz tube listing is a separate configuration. Its shared part reference does not establish interchangeability with this domed item.
Order from 1 sleeve online. For matching help or a repeat supply requirement, send your system label, sleeve measurements, photographs and quantity. This item is the quartz sleeve; lamps, seals and hardware are separate unless stated in your order confirmation.
Ask about the RQ-850 domed sleeve · Compare other sleeve references
Shipping options and applicable taxes are shown at checkout. For a required delivery date, ask us to confirm timing before ordering.
