RQ-999 Replacement Quartz Sleeve — Domed

RQ-999 domed replacement quartz sleeve for UV water-treatment equipment, supplied by Glass Automated Products. The published reference is 1046 mm long, with a 22.5 mm outside diameter and 20 mm inside diameter.

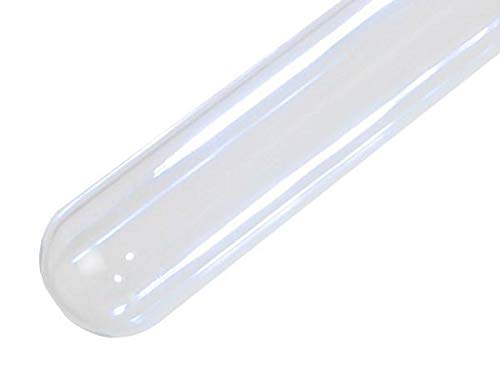

Representative photo. Refer to the listed dimensions and end configuration for the exact sleeve supplied.

RQ-999 reference dimensions

These nominal identification dimensions appear in LUMINOR's model tables below. UV Superstore's RQ-999 replacement reference corroborates the dimensions and domed configuration. Custom tolerances are reviewed with your drawing.

LUMINOR BLACKCOMB system references

LUMINOR identifies RQ-999 for these models in its quartz-sleeve tables:

• BLACKCOMB 4.1: LB4-151
• BLACKCOMB 5.1: LB5-151
• BLACKCOMB 6.1: LB6-151

Check your complete equipment model, including its suffix or revision, against the sleeve reference in the system manual.

Choose the 1046 mm domed configuration

The 999 in the part code is not the published sleeve length. Check the quartz sleeve's overall length, both diameters, domed end and sealing arrangement. Measuring the lamp instead of the sleeve can lead to selecting the wrong component.

This is the domed listing. Our generic RQ-999 quartz listing is a separate catalog item; compare configurations before ordering.

Order one sleeve or plan repeat supply

Order from 1 piece online. For identification help, repeat quantities or a required delivery date, send the equipment label, existing part reference, dimensions and photographs. Shipping options and applicable taxes are shown at checkout.

This listing is for the quartz sleeve. Lamps, O-rings, seals and mounting hardware are separate unless specified in your order confirmation. Follow the equipment manufacturer's replacement and installation instructions.
