QPD10 Replacement Quartz Sleeve — Domed

QPD10 domed replacement quartz sleeve for UV water-treatment equipment. The published reference is 254 mm long, with a 22.5 mm outside diameter and 20 mm inside diameter.

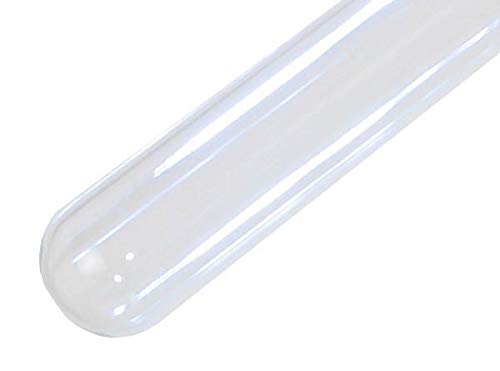

Representative photo. Refer to the listed dimensions and end configuration for the exact sleeve supplied.

QPD10 reference dimensions

Dimensions shown are nominal part-identification references from UV Superstore’s QPD10 listing. If your drawing specifies tolerances or a particular material grade, send it for confirmation with your order.

Check your replacement

QPD10 and QPD22 share the same published diameters but have different lengths. Match the complete part number and overall length; do not select a sleeve by diameter alone. QDP-10 is a separate catalog listing.

This replacement sleeve is supplied by Glass Automated Products. Use the linked supplier references to help identify your part.

Ordering and support

Order from 1 piece. For multiple units, a required delivery date or help identifying a replacement, send your equipment model, part number and photographs. We can also review a drawing or sample for a custom sleeve.

This listing is for the quartz sleeve. Lamps, O-rings, seals and mounting hardware are supplied separately unless listed in your order confirmation. Follow the equipment manufacturer’s service and installation instructions.

Ask us to check your QPD10 sleeve or call 714-898-8800.
