QPD22 Replacement Quartz Sleeve — Domed

QPD22 domed replacement quartz sleeve for UV water-treatment equipment. The published reference is 552 mm long, with a 22.5 mm outside diameter and 20 mm inside diameter.

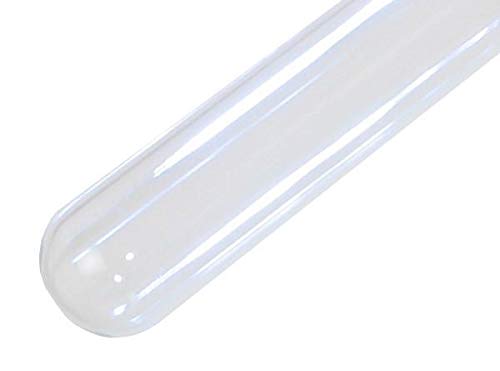

Representative photo. Refer to the listed dimensions and end configuration for the exact sleeve supplied.

QPD22 reference dimensions

Dimensions shown are nominal part-identification references from UV Superstore’s QPD22 listing. If your drawing specifies tolerances or a particular material grade, send it for confirmation with your order.

System reference

UV Superstore lists QPD22 for the Pura UVBB-3. Check the model and sleeve reference in your equipment manual, including the exact system revision, before ordering.

Check your replacement

Use the 552 mm reference when checking overall length. A nominal “22-inch” description is not an exact measurement. The QPD10 domed sleeve is shorter. QDP22 is a separate catalog listing.

This replacement sleeve is supplied by Glass Automated Products. Use the linked supplier references to help identify your part.

Ordering and support

Order from 1 piece. For multiple units, a required delivery date or help identifying a replacement, send your equipment model, part number and photographs. We can also review a drawing or sample for a custom sleeve.

This listing is for the quartz sleeve. Lamps, O-rings, seals and mounting hardware are supplied separately unless listed in your order confirmation. Follow the equipment manufacturer’s service and installation instructions.

Ask us to check your QPD22 sleeve or call 714-898-8800.
