RQ-600 Replacement Quartz Sleeve — Domed

RQ-600 domed replacement quartz sleeve for UV water-treatment equipment, supplied by Glass Automated Products. The published reference is 646 mm long, with a 22.5 mm outside diameter and 20 mm inside diameter.

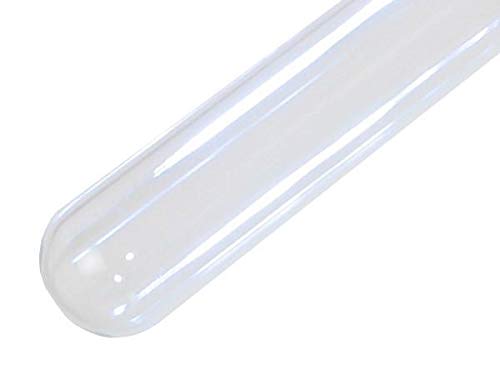

Representative photo. Refer to the listed dimensions and end configuration for the exact sleeve supplied.

RQ-600 reference dimensions

LUMINOR’s manufacturer tables below provide the nominal identification dimensions. The UV Superstore RQ-600 replacement reference also lists these dimensions and the domed configuration. Custom tolerances and features are reviewed with your drawing.

BLACKCOMB-HO system references

LUMINOR identifies RQ-600 for LBH4-251, LBH5-251 and LBH6-251 in its BLACKCOMB-HO quartz-sleeve tables. Use your complete model, including any suffix or revision, to confirm the sleeve reference.

Match the 646 mm sleeve configuration

The 600 in RQ-600 is a part identifier; the published sleeve length is 646 mm. Check the quartz sleeve’s dimensions rather than using the lamp’s length. Match the domed end and seal interface as well as the nominal diameters.

Looking at a larger BLACKCOMB-HO unit? Our RQ-950 domed sleeve guide covers a different, 996 mm reference. These sleeves should be selected by the system parts list, not substituted because their diameters match.

Order one sleeve or plan a repeat order

Order from 1 piece. Once you have matched the reference and configuration, select your quantity above. For help identifying a sleeve, send the equipment model, existing part number, measured dimensions and a photograph. Include your quantity and required delivery date for a repeat-order inquiry.

This listing is for the quartz sleeve. Lamps, O-rings, seals and mounting hardware are supplied separately unless listed in your order confirmation. Follow the equipment manufacturer’s service and installation instructions.

Get help matching RQ-600 or call 714-898-8800.
