RQ-950 Replacement Quartz Sleeve — Domed

RQ-950 domed replacement quartz sleeve for UV water-treatment equipment, supplied by Glass Automated Products. The published reference is 996 mm long, with a 22.5 mm outside diameter and 20 mm inside diameter.

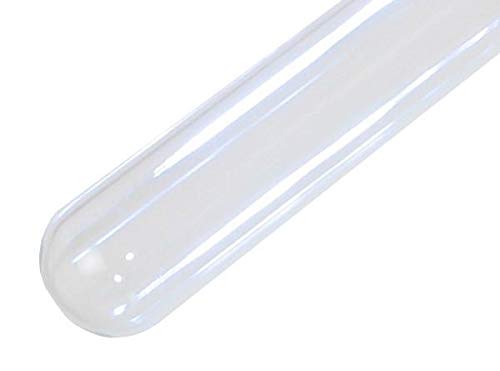

Representative photo. Refer to the listed dimensions and end configuration for the exact sleeve supplied.

RQ-950 reference dimensions

LUMINOR’s manufacturer tables below provide the nominal identification dimensions. The UV Superstore RQ-950 replacement reference also identifies a domed sleeve with these dimensions. Catalog dimensions identify the reference; any custom acceptance tolerances require separate review.

BLACKCOMB-HO system references

LUMINOR lists RQ-950 for LBH4-401, LBH5-401 and LBH6-401 in its BLACKCOMB-HO quartz-sleeve tables. Check the complete model and sleeve part number in your equipment documentation.

Choose by sleeve reference and geometry

The RQ-950 sleeve reference is 996 mm long. A 950 mm lamp measurement does not describe this sleeve. Compare the existing quartz component’s length, diameters, domed end and sealing arrangement.

The separate QS-950 catalog item is a different reference. Likewise, the RQ-600 domed sleeve is a shorter 646 mm reference. Matching diameters or similar part numbers alone do not establish interchangeability.

Order one sleeve or plan a repeat order

Order from 1 piece. Once you have matched the reference and configuration, select your quantity above. For help identifying a sleeve, send the equipment model, existing part number, measured dimensions and a photograph. Include your quantity and required delivery date for a repeat-order inquiry.

This listing is for the quartz sleeve. Lamps, O-rings, seals and mounting hardware are supplied separately unless listed in your order confirmation. Follow the equipment manufacturer’s service and installation instructions.

Get help matching RQ-950 or call 714-898-8800.
